Attention! Exclusive product for the Spanish, Portuguese, Andorran, and Mexican markets.
Sagola's MACK professional line has been designed and manufactured with the needs of small and medium-sized metal and wood industries.
High production pneumatic equipment with mixed paint system.
Easy handling and reduced maintenance.
Long life even with the most problematic materials. Low air consumption.
Valid for products such as lacquers and varnishes, basecoats, enamels, waterborne basecoat and light and antioxidant primers.
Category: Industrial pumps
Tags:

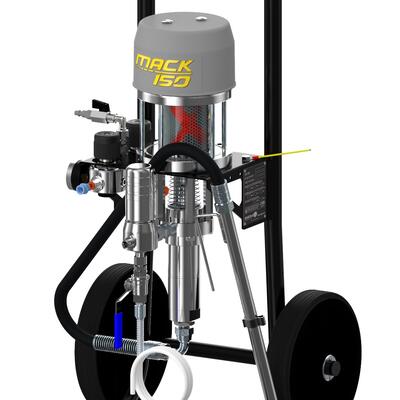

Mack 150 Mix
, pneumatic mix equipment
, Mack 150 X Mix

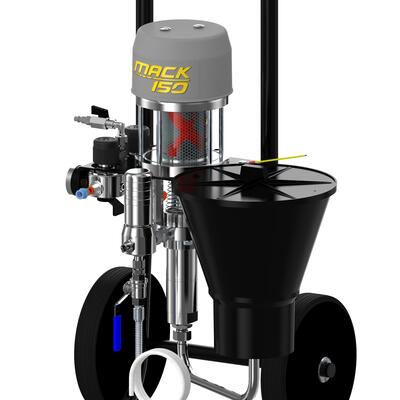

Gravity deposit
Version with gravity deposit (Optional).
5 liter capacity.

Valves
Oversized valve design.
Reduced wear on the pump.

Hose
5m. air hose and product.
Light and resistant.

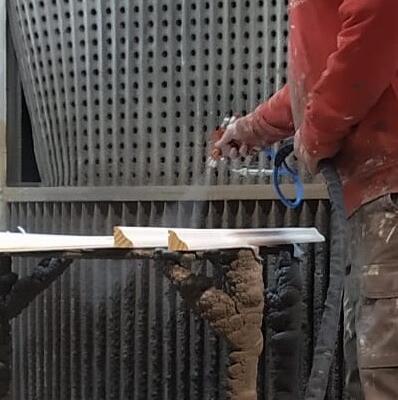

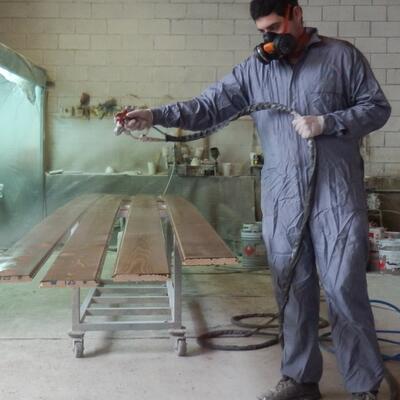

Spray gun - Full equipment
Mini Xtreme Mix.
Small and ergonomic.
Weight (Pump) | 16.8 Kg. (37 lbs) |
Dimensions (standard) | 48 x 47 x 87.5 cm. |
Maximum air inlet pressure | 7 bar (102 psi) |
Free flow (60 cycles/min) | 2.7 L/min. (0.59 gpm) |
Flow per cycle | 45 c.c. (0.01 gpm) |
Air inlet connection | 1/4” BSP F - Quick connector Us-Mil |
Product outlet connection | BSP 1/4” M |
Product outlet pressure maximum | 91 bar (1,320 psi) |
Max. nozzle of the gun | 0.018" |
ATEX | ATEX II 2G, IIB T3 x |
Code | Version |
---|---|
30931901 | Mack 150 Trolley+suction Probe |
30931902 | Mack 150 Trolley+tank |
30931903 | Mack 150 Wall Support+suction Probe |
30931904 | Mack 150 Wall Support+tank |
30931999 | Mack 150 Complete Equipment |
